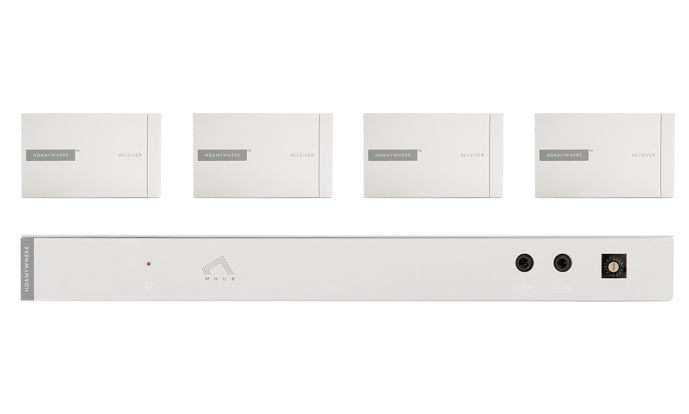

Description The mHub2K14 HD AnyWhere 1 In 4 Out Over CAT5/6 HDMI splitter delivers Full HD 1080p up to distances of 50m / 164 ft over a single Cat 6 cable with two-way IR. The HDMI loop out on the central hub enables the integration of a fifth display. Comprised of a central hub and four display receivers, the mHub 2K 1×4 HDMI over Cat splitter delivers Full HD 1080p@60Hz 24-bit colour up to 50m / 164 ft over a single Cat 6 cable from one HDMI set top box to five displays. Control is delivered by two way-IR. The mHub 2K 1×4 hub has a HDMI loop out for integrating a fifth display or stacking multiple mHub 1×4 splitters to facilitate distribution to more displays. Please see the product manual for advice on stacking or contact technical support. Stereo audio, LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio audio formats are supported and EDID profile management is administered via a selector wheel on the central hub. A short-run adjust switch allows for the HDMI signal to be optimised for distribution over shorter runs of Cat cable. With each mHub 2K 1×4 splitter package, installers get everything they need for a full set up: one central hub with 12V PSU, four receivers with 5V PSUs, IR transmitters and receivers, and USB to 5V power leads. The central hub and display receivers are both slimline; the display receivers measure just 49mm (W) X 81mm (D) X 25mm (H) and can be powered optionally by USB to 5V power leads (when supported by the display models) for an ultra-neat finish. These USB to 5V power leads come supplied with every package. DiagramDocumentsSpecs Please access this products downloads via its support page Product info Product code – MHUB2K14 SKU UK 2.50.691 EU 2.50.693 US 2.50.695 Form-factor Compact Product type HDMI over Cat splitter Max video inputs 1 x HDMI Max video outputs 4 x Cat outputs 1 x HDMI loop outs Max resolutions and max distances Full HD 1080p- 50m / 164 ft (over Cat 6) Audio formats supported Stereo audio, LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio Audio Extraction at Hub X Audio Extraction over Digi Coax at Hub X Audio Extraction Headphone at Hub X ARC X RS232 Control at Hub X RS232 Port Receiver X IP Control X Network Setup Method N/A 10/100 Ethernet support X 2-way IR ✓ Receiver control 2-way IR EDID management ✓ HDMI version 1.4 HDCP support 1.4 Hub control N/A Hub power 12 V Receiver power 5V or USB to 5V power leads (if supported by the display model. These come supplied with package) Warranty 1 year Weight and dimensions mHub central hub Height: 35mm (1.3″) Width: 260mm (10.2″) Depth: 120mm (4.7″) Weight 750g (1.6lb) mHub receiver Height: 25mm (0.9″) Width: 50mm (1.9″) Depth: 80mm (3.1″) Weight 115g (0.2 lb)
