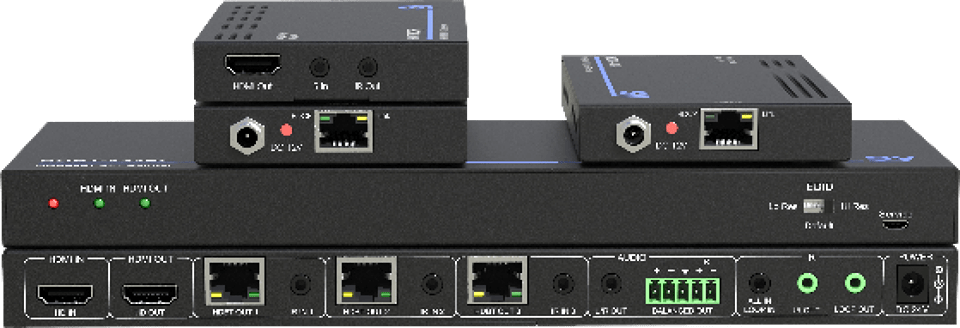

Description The SY-HDBT-131EC-Set is a cost-effective 4K to HDBaseT splitter and extender set, capable of transmitting up to 70m @ 1080p or 40m @ 4K. The 131EC has a single HDMI input, 3 x HDBaseT outputs, and an additional local HDMI output, with the ability to de-embed the audio on a balanced analogue output. It comes supplied with 3 EC receivers, PoC and bi-directional IR. FeaturesSpecificationsDiagram A cost-effective distribution platform Connect and extend transmission range to 70m @ 1080p or 40m @4k UHD. Kit includes all receivers and accessories for quick, time-saving connection. Receivers powered by 131EC. EDID management facility Ensure accuracy and superior display refresh speeds with EDID controls. De-embed audio Use Phoenix connectors or 3.5mm to de-embed analogue audio in balanced or single. IR control IR in either direction between the transmitter and receiver. SY’s legendary build quality and reliability Video Input  Input Connector: 1 x Female HDMI Type A HDMI Standard: Supports 4K@60 4:2:0 & HDCP2.2 and is backward compatible with all previous standards. Video Output Output Connectors: 1 x Female HDMI Type A 3 x Female RJ45 (with LED indicators) HDMI Standard: Supports 4K@60 4:2:0 & HDCP1.4/2.2 and is backward compatible with all previous standards. Video General  Video Signal: HDMI Transmission Distance (cat6a): 1080P@60Hz ≤70m, 4K2K@30Hz ≤40m Resolution: VESA and SMPTE 480p to 2160p (4K UHD) with 3D. (All resolutions to: 4096x2160p @60Hz 4:2:0 8bit, 3840x2160p @30Hz 4:4:4 8bit) All PC resolutions to 1920×1200 EDID Management: In-built EDID data and manual EDID management Gain: 0 dB Bandwidth:10.2Gbit/s Audio General Output Signal: Stereo audio in both balanced and unbalanced modes Frequency Response: 20Hz ~ 20KHz Output Connector: 1 x L&R (3.5mm stereo jack), 1 x L /L- & R /R- Balanced stereo out (5 way screw terminal) Controls  Panel Control: Three position EDID mode switch IR Control: 4 x IR IN, 1 x IR OUT (wideband carrier 28-60KHz) IR Control Connectors: 1 x 3.5mm jack sockets General  Power Supply: 24V DC 2.71A Power Consumption: 14.4W with one receiver Temperature: 0 ~ 45℃ Reference Humidity: 10 ~ 90% Dimension (W*H*D): 260 mm x 21.0mm x 100.0 mm Net weight: 450 g
